Building Reports

After adding new report to the project

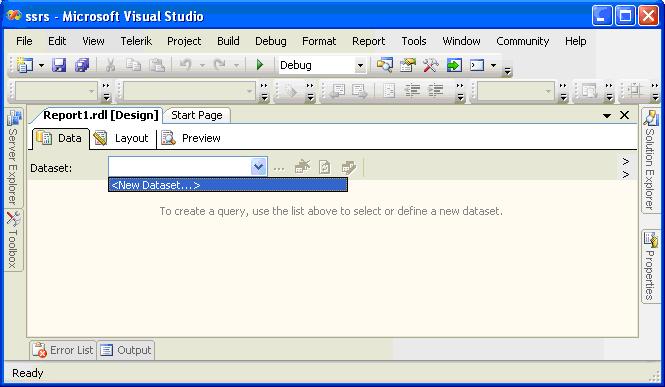

The first thing we need to do is get data into our report. At the top of the Data tab choose <new dataset…> from the dropdown list:

It will opens a new window for adding new data set.

Name the dataset "DataSet1", and select the data source from the dropdown. Select StoredProcedure as the command type, and enter Stored Procedure Name in the query string box. Click OK to close the dialog. Test the dataset by clicking on the big red exclamation point at the top of the report designer. This executes the query and displays the results. You can repeat these steps if you wish to add multiple datasets to your report.

Setting up the report display

Next, switch to the Layout tab. This is where you actually build the report display. Start by dragging a table from the Toolbox, onto the Body section of the report. By default, the table shows a header row at the top, a detail row in the middle and a footer row at the bottom. You can add additional columns to the table by right-clicking on one of the columns and selecting one of the two Insert Column options.

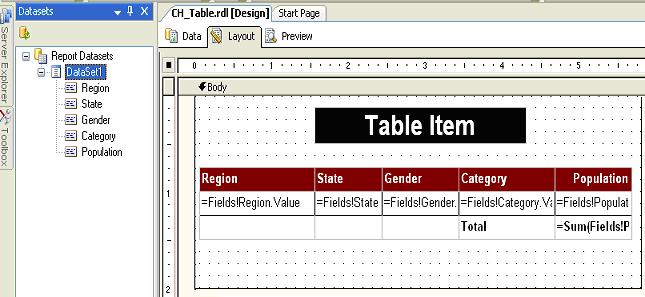

Click on the Datasets tab under Toolbox on the left-hand side of the Visual Studio environment. You should see the DataSet1 dataset. Expand it, select Region and drag it to the first cell of the body row of the table. This will display the Region field in the first column. Now put the State in the second column, and the Gender in the third and so on:



Note that, when you drag the column like FirstName into the body row of the table, SSRS make a guess as to what to call the row. It calls it "First Name". You can click on the Preview tab to view the report.
